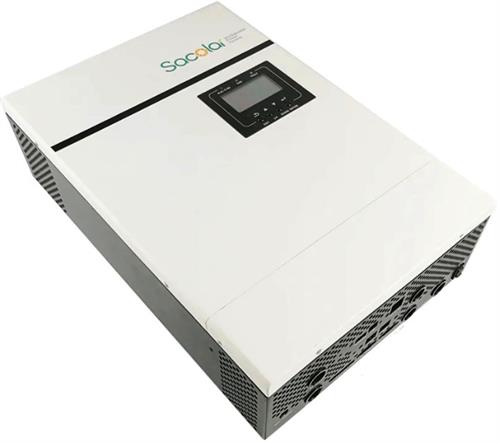

Solarix Sacolar 5KVA 48VDC 100A Axpert Type Parallel Inverter

The Solarix Sacolar 5KVA  48VDC 100A Axpert Type Parallel Single Phase High Voltage Inverter is designed to provide a reliable backup power solution for homes as well as medium to large businesses and office environment installations. Equipped with a High Voltage 100A MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. The pure sine wave output enables easy start-ups for motor-type loads such as refrigerators, motors, pumps. compressors and laser printers as well as electronic loads like TVs. Computers. power tool and battery chargers. Can be connected to up to 6 units totalling 30kVA in parallel, CAN And RS485 Port For BMS Communication.

Features
• 5.0KVA Pure Sine Wave 48VDC Off-Grid Solar Inverter
• Continuous: 5kW / 5 kVA Max Watt Output
• High Voltage Built-In 100A MPPT Solar Charge Controller
• Voltage: 230V AC and Battery Voltage: 48VDC
• PV Maximum input current: 20A
• MPPT Voltage range: 120 to 430 VDC
• Can Be Set: Solar First, Grid First, Solar & Grid, Solar Only
• Solar Only: 100A (Maximum)
• Grid Only: Up To 80A
• Combination Solar and Grid: Up To 140A
• Peak Efficiency: 93%
• Overload And Short Circuit Protection
• Programmable Supply Priority For PV ,Battery Or Grid
• CAN & RS485 Port For BMS Communication
• Communication with LiFePO4 Batteries Via RS485 Port.

Specifications
• Stock Code IN5KPA2YHV
• Description Solarix Sacolar 5KVA  48VDC 100A Parallel Inverter
• Product Type Axpert Type Off-Grid Solar Parallel Inverter Single phase Pure Sine Wave
• Rated power 5KW (5000W)
• MPPT ranges 120V-430VDC
• Voltage: 230V AC and Battery Voltage: 48VDC
• Pure Sine Wave AC Output

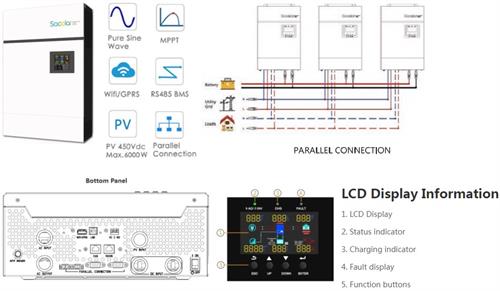

• Parallel Operation Up To 6 Units
• With Can/Rs485 For BMS Communication
• Power Balance Of Solar And Utility Grid
• Can Work With Or Without Battery
• Dimension 470x320x13Smm
• Net Weight 12Kg
