Ubiquiti UniFi AC Dual Band Gigabit In-Wall HD AP | UAP-IW-HD

Ubiquiti’s UAP-AC-IWHD is an in-wall, WiFi 5 access point with an integrated 4-port Gigabit switch. It offers PoE passthrough when the device is powered by an 802.3af/at PoE switch. It supports MU-MIMO and is capable of reaching up to 2033Mbps aggregate over both 2.4GHz and 5GHz radios. The UAP-AC-IWHD is able to cater to a large number of wireless clients.

It can be configured and managed with the UniFi Network Application or mobile app.

*Note: PoE injector is not included.

Specifications =

Antenna Gain: (Single Polarity) 2.4GHz: 2x 1.8dBi; 5.8GHz: 2x 3.4dBi (Dual Polarity) 5.8GHZ 2x 6dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300 Mbps, 5GHz: 1733 Mbps

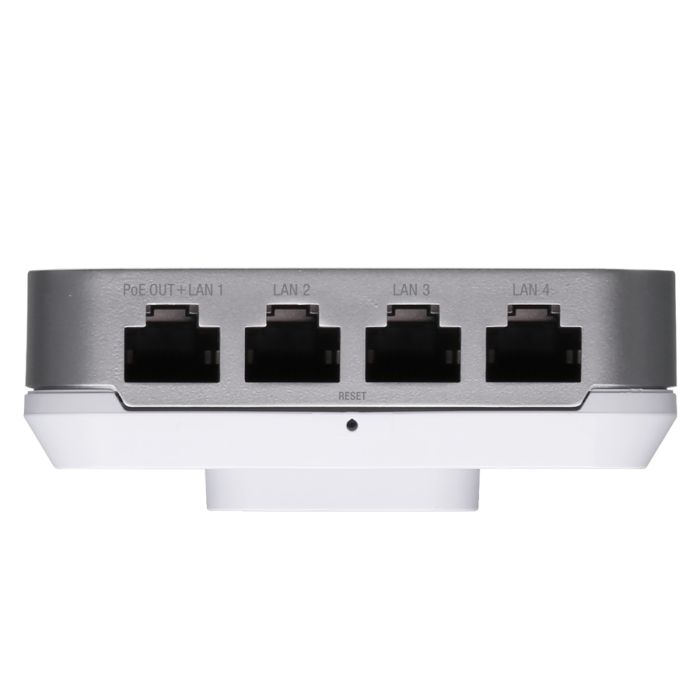

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W

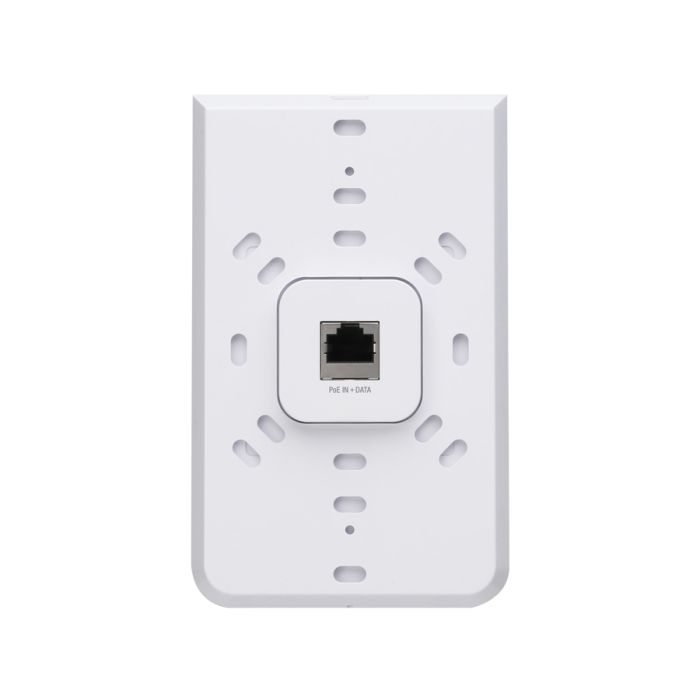

Mounting: 1 Gang Electrical Wall Box (Not Included)
Operating System: UniFi
Operating Temperature: -10°C to 60°C
PoE Input: 802.3at
PoE Output: 48V Pass-Through
Power Input: 802.3at or UniFi Switch
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 44V-57V
USB Ports: None

Dimensions: 139.7 x 86.7 x 25.75mm
Weight: 210g
